Heat Exchangers: |
NEU Shell & Tube |
Sales, Service & Support |
|
| |
  |
|
The NEU heat exchanger is the equivalent of the BEU Exchanger for industrial applications that do not need to comply with 3A sanitary requirements. Its threaded connections and unpolished surfaces make it the most economical choice for heating industrial fluids using steam as the heating media.

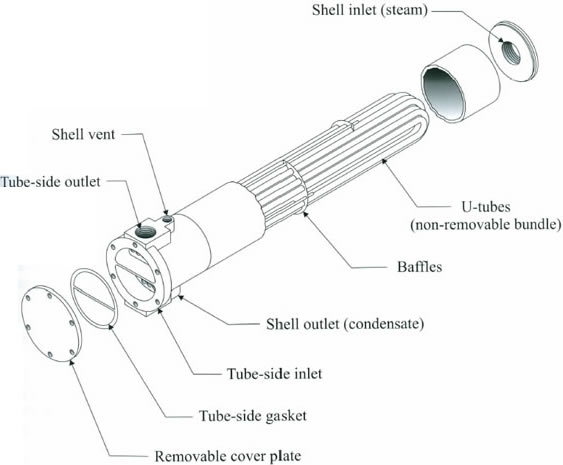

The non-removable U-Tube bundle is attached to a stainless steel cast waterbox and tubesheet. A removable cover plate allows cleaning of the waterbox channels.

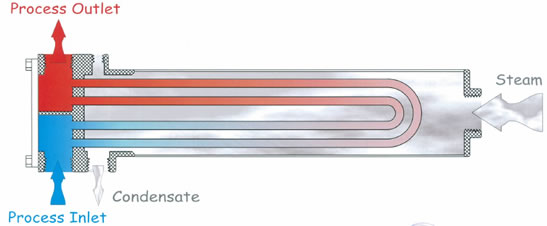

The U-Tubes expand and contract freely under the infuence of temperature variations, reducing the risk of failure due to thermal shock.
For additional questions on NEU Exchangers,
please contact us: 1-888-226-8522
|
| |
|
| |
| |
| |
| |
|
|
| |
|
|
|
|
